RGT EX86130 PRO Runner lamp control box with magnet automatic adsorption function is more convenient to assemble and disassemble, which effectively prevents the positive and negative poles from being inserted backwards.
Linkage Rod:
1.6mm diameter solid metal 8 connecting rod structure;
2.The ball joint of the linkage rod use reinforced nylon material with a new formula, which is more resistant to friction and deformation.
Transmission System:
1. RGT EX86130 PRO Runner front and rear drive shafts are made of #1144 steel CVD structure, and the high-quality bearing with sealing cover is designed for reverse transmission；
2.The front-drive steering driveshaft use steel #1144 CVA material;
Gear :
1. RGT EX86130 PRO Runner front and rear axles use CNC steel spiral gear, which can raise up the front and rear driveshaft and make the chassis of the car have better pass ability;
1. RGT EX86130 PRO Runner main body adopts hardened stainless steel chassis beam;
2. Integral straight axle comes with caster angle ;
3. 46-degree steering angle and positive Ackerman angle;
4. servo mounted on axel , 25T metal servo arm;
Deceleration system:
1. Low center of gravity with limited-slip reducer, all metal gears with #45 steel reduction shaft;
2. High-low speed 2 gears switching;
3. RGT EX86130 PRO Runner Equipped with DIG rear axle locking function, which brings a smaller turning radius for the car and have front-wheels drive function.
Center of gravity for car:
1. "RGT EX86130 Pro Runner" uses low-center-of-gravity structure in factory, and adopts a weight ratio of 60% for the front wheel and 40% for the rear wheel. Then, the crawler have a larger climbing angle.
2. The weight ratio of the left and right sides is basically balanced, with a larger lean angle.
Suspension and wheels:
1. RGT EX86130 PRO Runner suspension system adopts CNC aluminum alloy twisted hydraulic shock absorber, which brings more convenient damping adjustment.
2. RGT EX86130 PRO Runner wheels are made of butyl rubber, which are 110mm diameter MT tires, coming with two-piece multi-layer 1.9-inch wheel hub for better climbing grip and more realistic.
Electronic Parts:
RGT EX86130 PRO Runner will be oriented to players in the form of RTR version, equipped with 35T RC550 super-strong torque motor, "Hobbywing" WP-1060 special waterproof electronic speed controller with metal gear for crawler, 25KG all-metal gear waterproof steering servo, ESC can support 2-3S lithium battery mode, and a 6-channel 2.4G remote controller specially designed for this car.
Light control:
1. RGT EX86130 PRO Runner lamp control box with magnet automatic adsorption function is more convenient to assemble and disassemble, which effectively prevents the positive and negative poles from being inserted backwards.
2. Standard multi-mode lighting effects, including high beam, low beam, turn signal, parking light, reversing light, flashing light, etc.
3. RGT EX86130 PRO Runner colors of car lamps include white light, yellow light and red light.
Other highlights:
1. CNC winch mount, 25KG, 360 degree metal winch servo, winch steel cable can be stretched up to 90CM, supporting the stretching weight up to 15KG.
2. RGT EX86130 PRO Runner front bumper adds stainless steel protective plate, which can be realistic and effectively protect the winch servo.
Speifications:
- Model: RGT EX86130 PRO Runner Bronco
- Drive mode: 2WD+4WD+DIG
- Vehicle length: 512mm
- RGT EX86130 PRO width: 240mm
- RGT EX86130 PRO height: 241 mm
- Wheelbase: 313mm
- Wheel: 1.9 "/110 * 40mm
- Height above ground: 35mm (bridge box) 73mm (chassis)
- Heavy Star: 2.98kg (excluding battery)
- Remote control: 2.4G/6CH
- Electric adjustment: "Haoying" WP-1060 160A
- RGT EX86130 PRO Battery (Optional): 7.4v 6200mah 30C large capacity lithium battery
- RGT EX86130 PRO Charger (Optional): 80W imax B6AC high-power balance charger multi-function aircraft model car model lithium battery Ni-MH charger
- Steering gear: 25KG/metal teeth
- Winch steering gear: 360 ° turning metal teeth/25KG
- Other servo motors: 4.8-7.4V/9G (DIG/output)
- Motor: 6235-RC550/35T
- Gear ratio/low degree: 53:1 (F), 57:1 (R)
- Gear ratio high speed: 28:1 (F), 30:1 (R)
- Longitudinal angle: 29 °
- Approach angle: 55 °
- Departure angle: 58 °
- Body material: PC spray soft blue
- Packaging size: 575 * 275 * 282mm

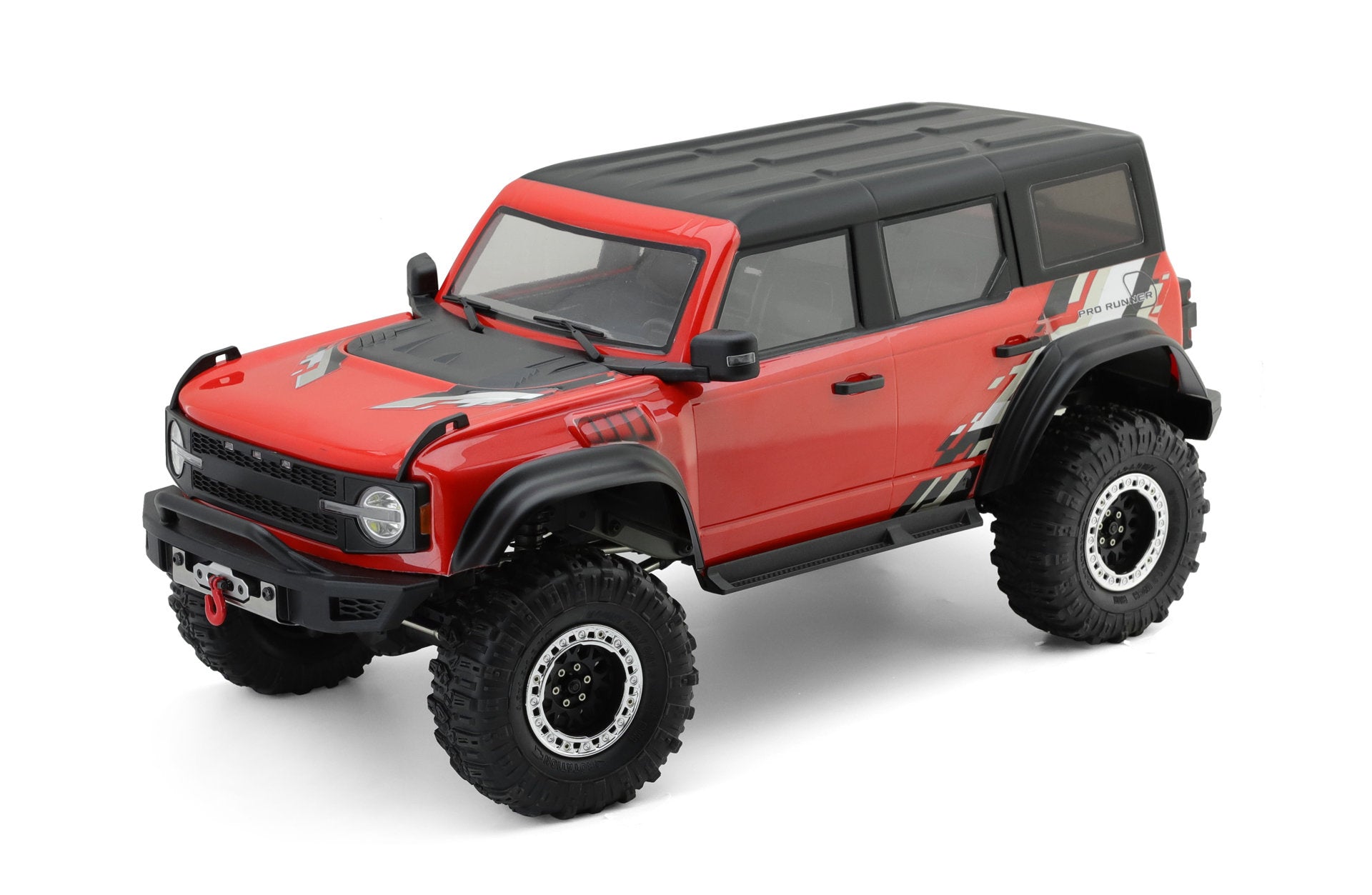

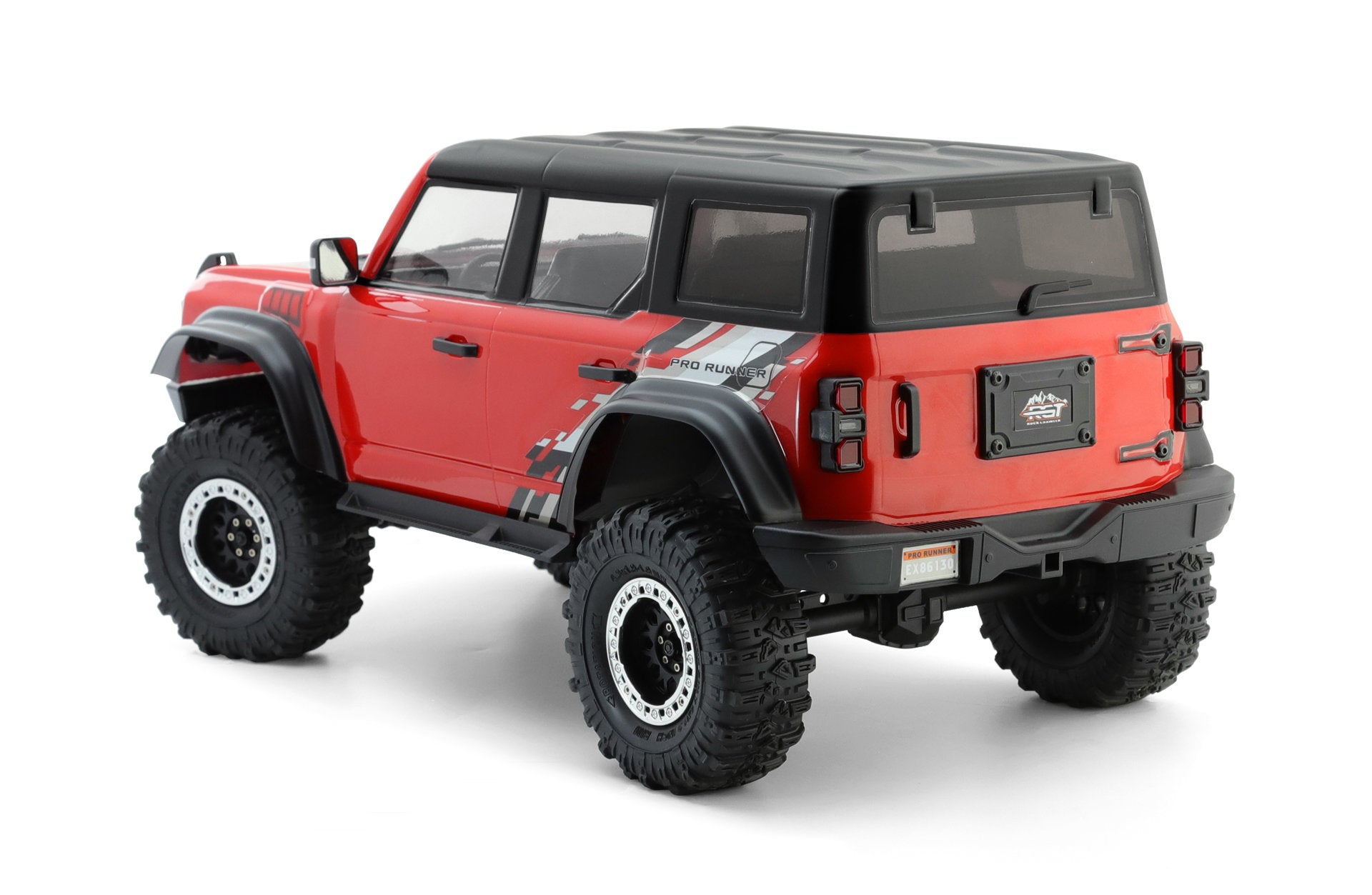

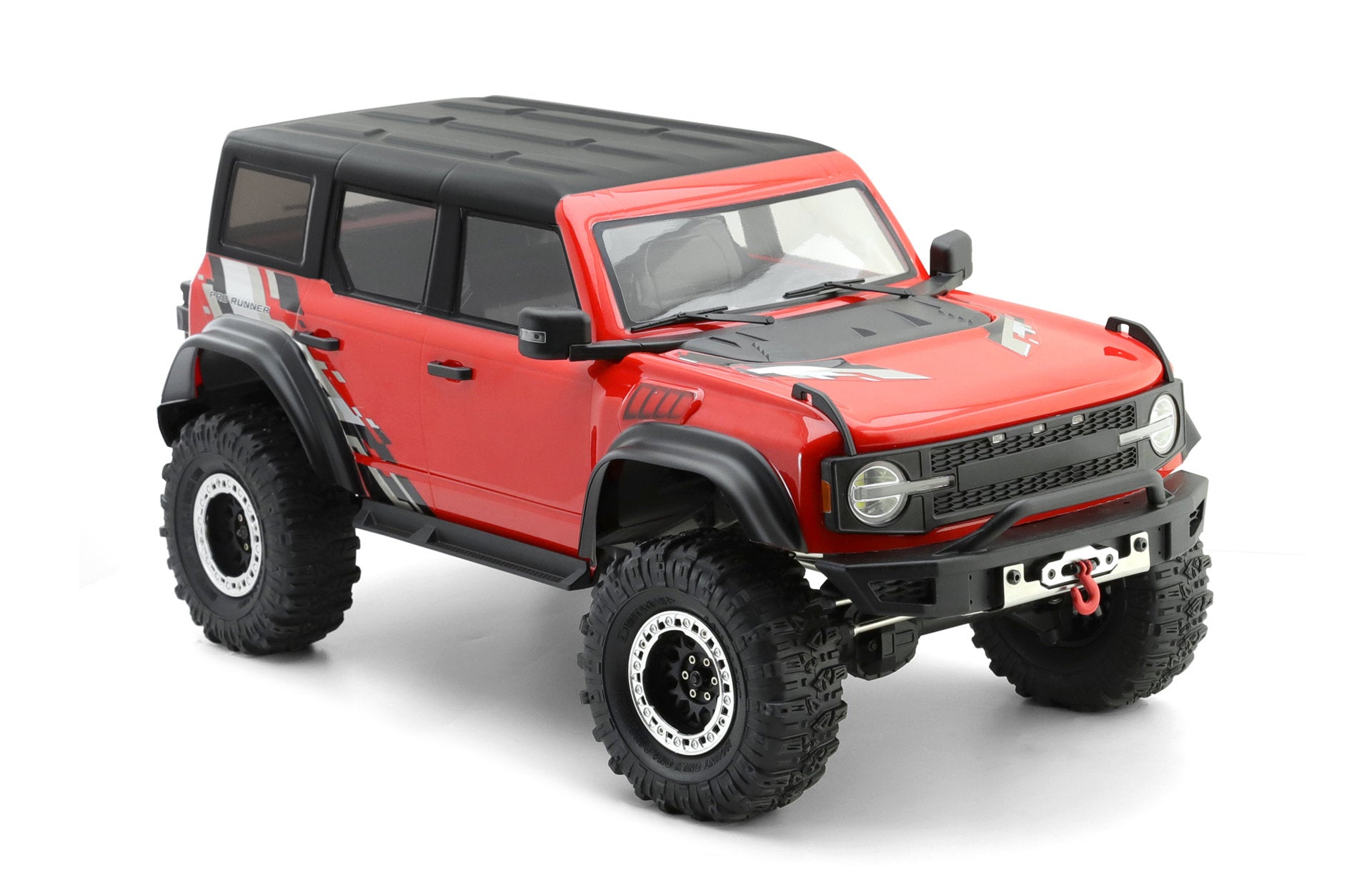

RGT EX86130 PRO Runner- Red(Bronco) 4X4 RTR 1/10 RC Crawler now available in India.
